Product Introduction

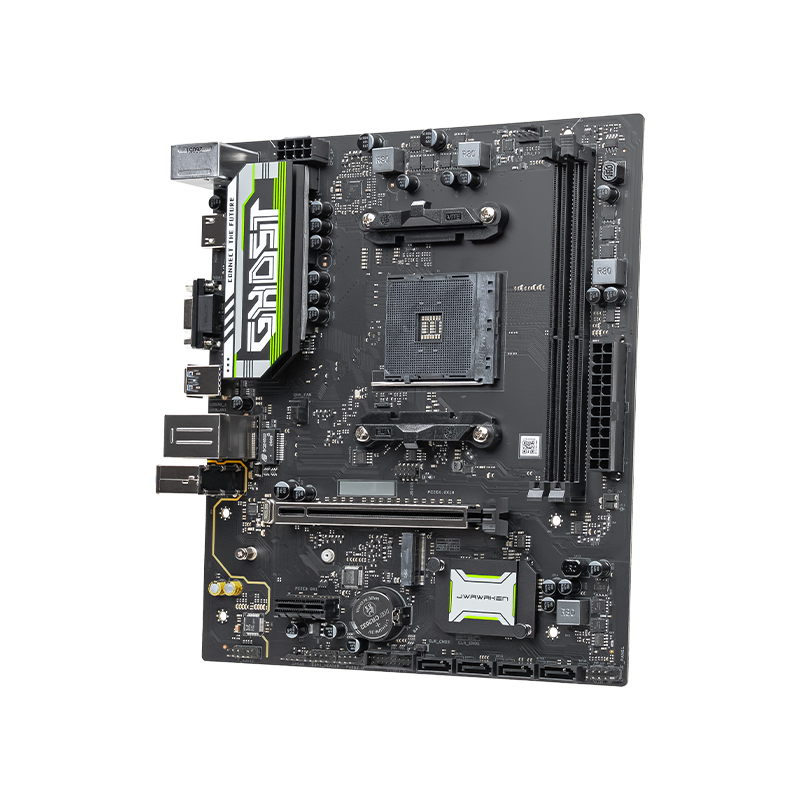

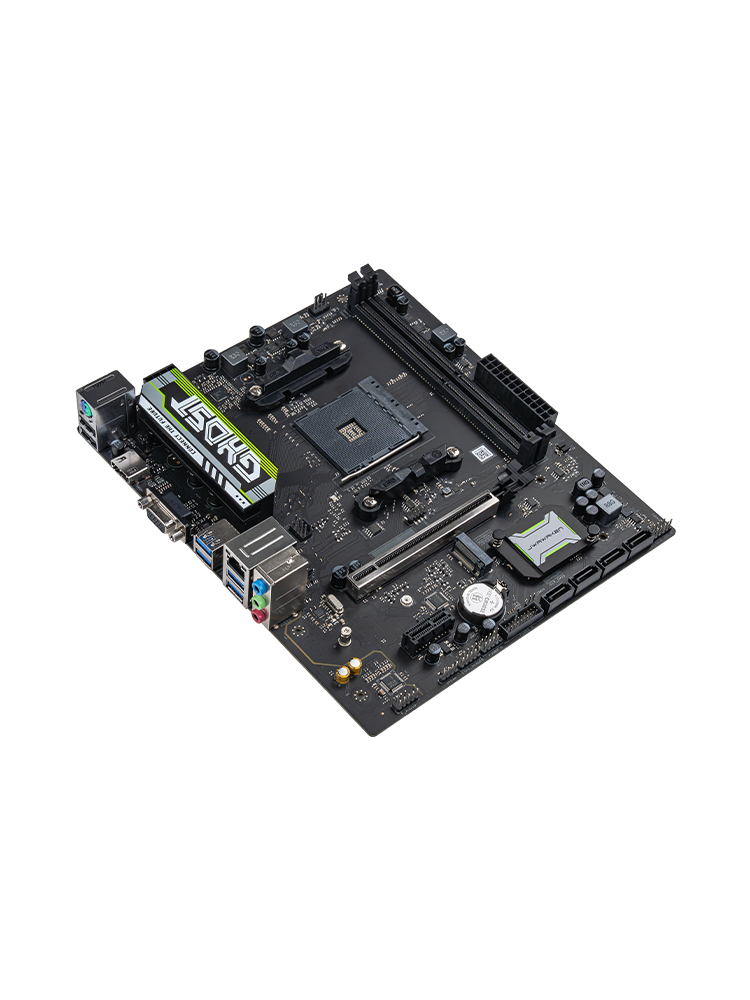

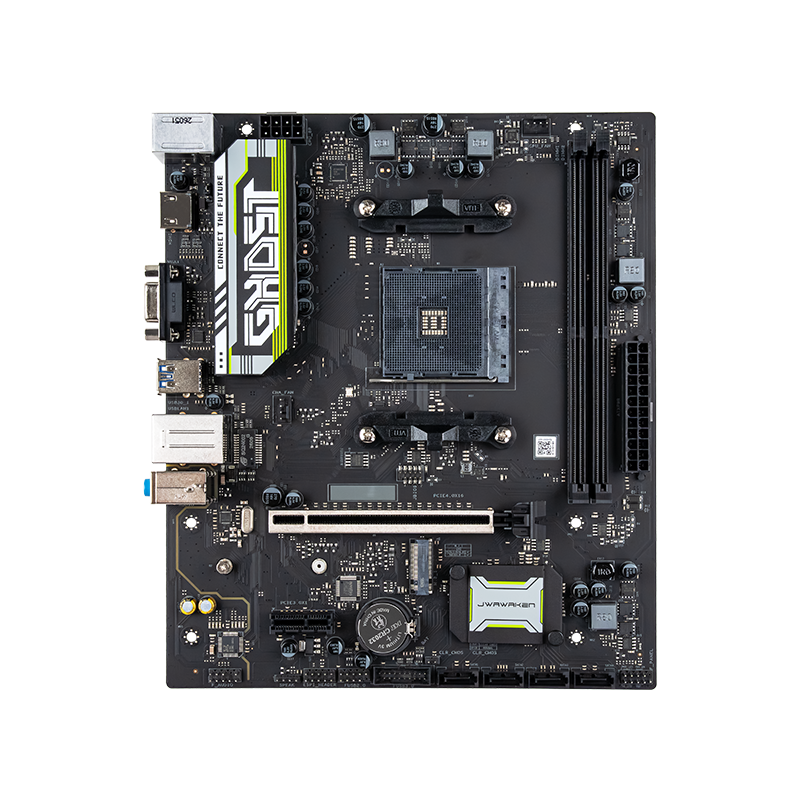

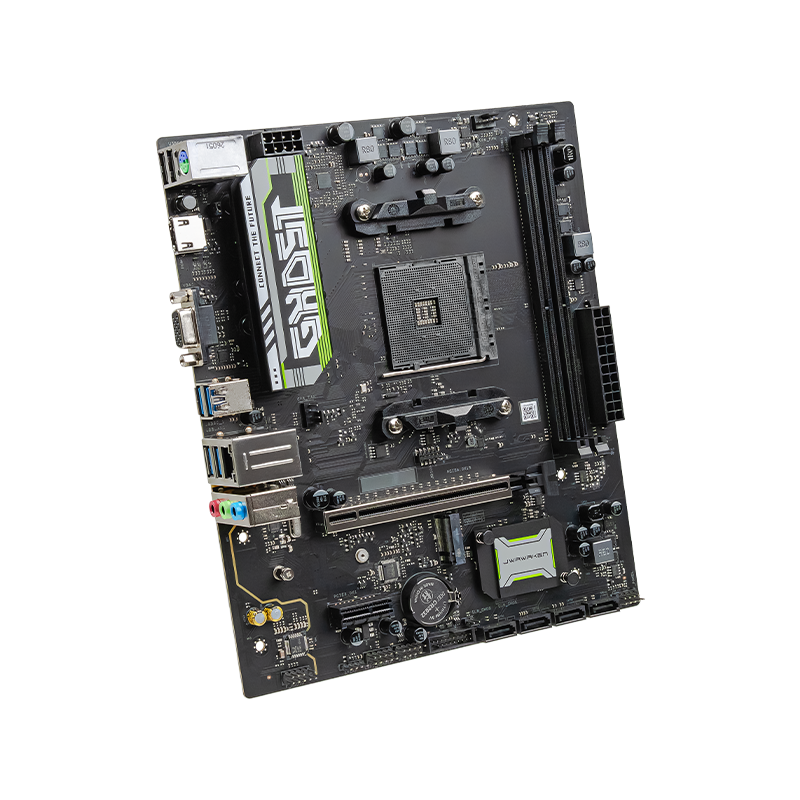

GHOST B550M

model：GHOST B550M

$64.99

Core Advantages：
6-Phase Smart Power Delivery
Dual DDR4, Up to 64GB (2×32GB)
Debug Status LED
Six-fold Hardware Safeguard

After-sales：
7-Day Free Return & Exchange
3-Month Direct Replacement
3-Year Warranty | Self RMA Supported

Buy Now Buy Now
Contact Customer Service Contact Customer Service
Product Overview
Specifications
Frequently Asked Questions
Technical Support
Compatibility List

  • CPU Supports AMD Ryzen™ 5000 / 5000 G / 4000 G / 3000 series Desktop Processors with AM4 Socket
    (* Please refer to the JWAWAKEN official website for the list of supported processors)
  • Chipset AMD B550 Chipset
  • Memory 2 x DDR4 UDIMM，Maximum Memory Capacity 64 GB (single slot supports up to 32 GB)
    Supports Dual-Controller Dual-Channel mode Supports Extreme Memory Profile (XMP) technology
    (*Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit JWAWAKEN official website.)
  • Display 1 x HDMI™ 1.4 port, supporting a resolution of up to 4K@60Hz
    1 x VGA port, supporting a resolution of up to 2K@60Hz
    （*Graphics specifications may vary depending on the CPU installed.）
  • Storage Features 1 M.2 slots and 4 SATA 6 Gb/s storage interfaces in total.
    AMD Ryzen™ 5000 / 3000 Series Processors：
    M.2_1 slot(From CPU) M key；type 2280/2242；supports PCIe4.0x4 / SATA mode
    AMD Ryzen™ 5000 G / 4000 G Series Processors：
    M.2_1 slot(From CPU) M key；type 2280/2242；supports PCIe3.0x4 / SATA mode
    4 x SATA 3.0 Slots *AMD RAIDXpert2 Technology supports PCIe RAID 0/1/10 and SATA RAID 0/1/10
  • Network 1 x Realtek 1Gb network RJ45 Interface
  • Audio Realtek High-Definition Audio Codec Chip
    Supports Audio Detection, Multi-Source Independent Output and Front Panel Audio Jack Switching Function
    Supports up to 24-bit/192kHz Playback
    Audio Separator Line Design
    Gold-Plated Audio Capacitors
    Left and Right Channel Layered Design
  • USB Rear USB Ports:
    4 x USB3.2 Gen1 5Gbps Type-A ports
    2 x USB 2.0 Type-A ports
    Front USB Ports:
    1 x USB3.2 Gen1 header，expandable to 2 x USB3.2 Gen1 ports
    1 x USB2.0 headers，expandable to 2 x USB2.0 ports
  • Expand AMD Ryzen™ 5000 / 3000 Series Processors： 1 x PCIe 4.0 x16 slot
    AMD Ryzen™ 5000 G / 4000 G Series Processors：
    1 x PCIe 3.0 x16 slot
    AMD B550 Chipset：
    1 x PCIe 3.0 x1 slot

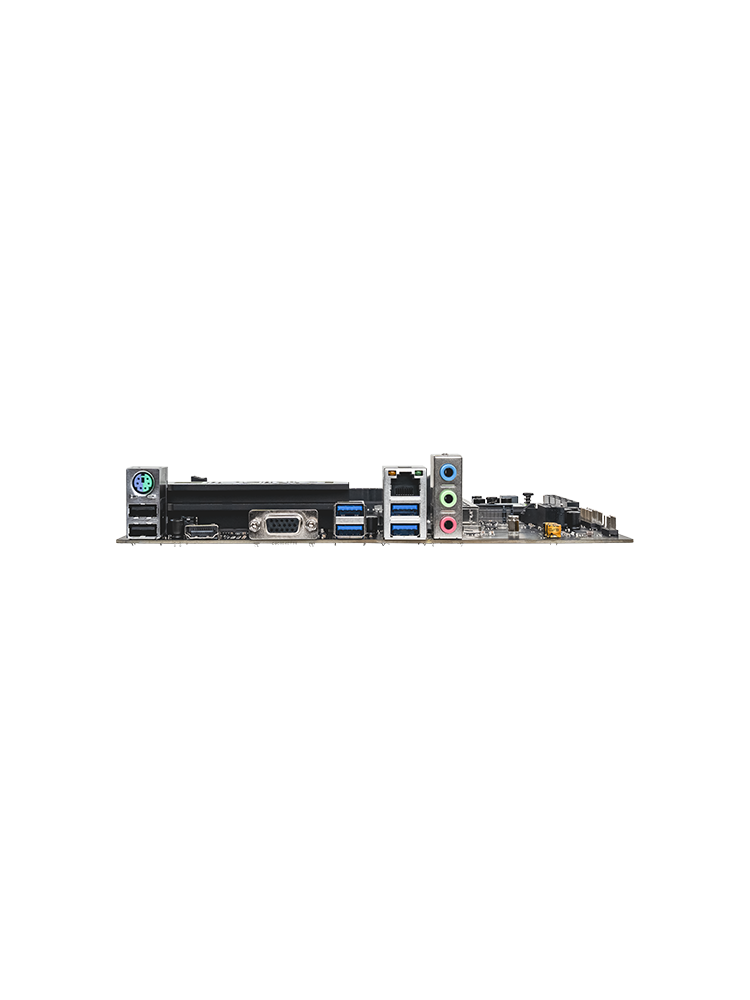

  • Rear I/O Interface 4 x USB3.2 Gen1 5Gbps Type-A ports
    2 x USB 2.0 Type-A ports
    1 x HDMI™ port
    1 x VGA port
    1 x Realtek 1000Mb network RJ45 Interface
    1 x PS/2 Combo Keyboard & Mouse Port
    3 x Audio Interface (Line out+Line in+Mic in)
  • Internal I/O Interface 1 x 24pin motherboard power socket
    1 x 8pin CPU power socket
    1 x M.2 SSD slots（Key M）
    4 x SATA 6Gb/s device interfaces
    1 x 4pin CPU fan header
    1 x 4pin case fan headers
    1 x USB3.2 Gen1 header，expandable to 2 x USB3.2 Gen1 ports
    1 x USB2.0 header，expandable to 2 x USB2.0 ports
    1 x 9pin front panel header
    1 x 9pin front panel audio header
    1 x 4pin speaker header
    1 x 10pin diagnostic card header
    1 x 2pin clear CMOS jumper
  • BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS
    3rd Generation Innovative Visual BIOS Interface
  • Operating System supports Windows 11 64-bit
  • Software supports JW Connect software
    *The functions supported by JW Connect may vary depending on the specifications of different motherboards.
  • PCB Info Micro ATX Form Factor; 230mm x 197mm

  • Drive

  • Equipment List&Software

  • BIOS

  • Manual

File Version System Update Date Brief Introduction Download
Audio 6.0.9730.1.zip win11/64 bit 2024-09-03 Realtek AUDIO Driver
Chipset 5.12.0.44.zip win11/64 bit 2024-03-26 AMD B550 Chpset Driver
Graphic 30.0.15002.1004.zip win11/64 bit 2024-09-03 AMD Radeon Graphic Driver
LAN 1168.18.312.2024.zip win11/64 bit 2024-09-03 2024-03-12
Raid 9.3.2.00318.zip win11/64 bit 2024-03-19 AMD Raid Driver
JW Connect_V3.3_20260601.exe win11/64 bit 2026-06-01 JW Connect Application
File Version System Update Date Brief Introduction Download
JW Connect_V3.3_20260601.exe win11/64 bit 2026-04-15 JW Connect Application
File Version System Update Date Brief Introduction Download
GHOST B550M D4.zip win11/64 bit 2026-05-11 GHOST B550 D4
File Version System Update Date Brief Introduction Download
GHOST B550M User Manual_V1.0_260204.pdf win11/64 bit 2026-02-04 GHOST B550M User Manual

  • CPU

  • Memory

Processor CPU Model Frequency Wattage Core Name L3 Cache Cores GPU
I7 I7-12700 2.1GHz 65W Alder Lake 25MB 12 Intel® UHD Graphics 770
I9 I9-12900KS 3.4GHz 150W Alder Lake 30MB 16 Intel® UHD Graphics 770
I5 I5-12400 2.5GHz 65W Alder Lake 18MB 6 Intel® UHD Graphics 730
G G6900 3.4GHz 46W Alder Lake 4MB 2 Intel® UHD Graphics 710
G G7400 3.7GHz 46W Alder Lake 6MB 2 Intel® UHD Graphics 710
I3 I3-12100 3.3GHz 60W Alder Lake 12MB 4 Intel® UHD Graphics 730
I5 I5-13600K 3.5GHz 125 W Raptor Lake 24MB 14 Intel® UHD Graphics 770
I9 I9-13900 2.00 GHz 65 W Raptor Lake 36 MB 24 Intel® UHD Graphics 770
I5 I5 13600 2.70 GHz 65 W Raptor Lake 24 MB 14 Intel® UHD Graphics 770
I7 I7 13700 2.10 GHz 65 W Raptor Lake 30 MB 16 Intel® UHD Graphics 770
I9 I9 13900K 3.00 GHz 125 W Raptor Lake 36 MB 24 Intel® UHD Graphics 770
I7 I7-14700K 3.4 GHz 125 W Raptor Lake-Refresh 33 MB 20 Intel® UHD Graphics 770
I9 I9-14900K 3.2 GHz 125 W Raptor Lake-Refresh 36 MB 24 Intel® UHD Graphics 770
I5 I5-14600K 3.5 GHz 125 W Raptor Lake-Refresh 24 MB 14 Intel® UHD Graphics 770
I3 I3-14100 3.5 GHz 60 W Raptor Lake-Refresh 12 MB 4 Intel® UHD Graphics 730
intel 7 300T 3.4 GHz 35 W Raptor Lake-Refresh 6 MB 2 Intel® UHD Graphics 710
RAM Speed Module Supplier Module P/N Capacity XMP/EXPO Support Spported Speed Chip Brand Timing Voltage Socket Support RGB
3000 VENGEANCE CM4X32GC3000C16K2D 32G XMP 3000 Micron Technology 16-20-20-38 1.344V 1,2 N/A
4000 VENGEANCE CMW32GX4M2G4000C18 16G XMP 4000 Micron Technology 20-22-22-42 1.344V 1,2 √
3600 Kingston KF436C18BBAK2/32 16G XMP 3533 SK Hynix 18-22-22-39 1.496V 1,2 √
3600 G-SKILL F4-3600C16D-16GTZNC 16G XMP 3600 SK Hynix 16-19-19-39 1.352V 1,2 √
4000 Team TF13D48G4000HC18JBK 8G XMP 4000 SK Hynix 18-22-22-42 1.352V 1,2 √
3200 Team TLZRD48G3200HZ16CBK 8G XMP 3200 SK Hynix 16-18-18-38 1.352V 1,2 N/A
3600 Asgard VMA47UG-AMC1U2AV3 C14 8G XMP 3600 Samsung 16-15-15-35 1.440V 1,2 √
3600 ADATA AX4U36008G8I-BBKD45 8G XMP 3600 Micron Technology 16-20-20-38 1.344V 1,2 √
3200 ADATA AX4U3200716G16A-DT60 16G XMP 3200 Micron Technology 16-20-20-38 1.344V 1,2 √
3600 Gloway TAC4U3600G14082C C14 8G XMP 3600 Samsung 14-15-15-35 1.448V 1,2 √
3200 Kingston CBD32D4U2S8ME-16 16G Non-XMP 3200 Micron-Technology 22-22-22-52 1.200V 1,2 N/A
2400 Transcend TS2GLH64V4B_100 16G Non-XMP 2400 Samsung 17-17-17-39 1.200V 1,2 N/A
3200 Samsung M378A4G43AB2-CWE 32G Non-XMP 3200 Samsung 22-22-22-52 1.200V 1,2 N/A
2666 Skhynix HMA82GU6CJR8N-VK 16G Non-XMP 2400 SK Hynix 17-17-17-39 1.200V 1,2 N/A
3200 Kingston KF432C16BBK2/32 16G XMP 3200 SK Hynix 16-19-19-36 1.352V 1,2 N/A
3600 Kingston HX436C17FB3K2/16 8G XMP 3600 SK Hynix 18-21-21-39 1.400V 1,2 N/A
3600 Thermaltake R020D408GX2-3600C18A 8G XMP 3600 SK Hynix 18-19-19-39 1.352V 1,2 N/A
3000 XPG AX4U300038G16-BGZ1 8G XMP 3000 Micron Technology 16-20-20-38 1.352V 1,2 N/A
4266 Kingston KHKHX4266C19D4/8GX 8G XMP 4000 / 20-21-21-42 / 1,2
4800 Kingston KF4800C19D4/8GX 8G XMP 4000 / 19-23-23-42 / 1,2
5333 Kingston KF5333C20D4/8GX 8G XMP 4000 / 19-23-23-42 / 1,2
3200 Kingston KF3200C16D4/16GX 16G XMP 3200 / 16-20-20-39 / 1,2
4600 Thermaltake R016D408GX2-4600C19A 8G XMP 4000 / 20-26-26-45 / 1,2
3600 G.SKILL F4-3600C16D-16GTZNC 16G XMP 3600 / 18-20-20-38 1.45V 1,2
4000 Team TF10D48G4000HC18JBK 8G XMP 4000 / 20-22-22-42 / 1,2
4800 Team TF13D48G4800HC20ABK 8G XMP 4000 / 20-22-22-39 / 1,2
3600 Apacer AH4U08G36C25Y7GAA 8G XMP 3600 / 20-22-22-38 / 1,2
3600 Vesta PBF323C501015B C14 16G XMP 3600 / 18-20-20-38 1.45V 1,2
2400 UnilC SCE08GU13A1F1C-24T 8G Non-XMP 2400 Xi’an UniIC Semiconductor 17-17-17-39 / 1,2 N/A
2400 Transcend TS1GLH72V4B 8G Non-XMP 2400 Samsung 17-17-17-39 / 1,2 N/A
2666 Ramaxel Ramaxel 4G/DDR4-2666 4G Non-XMP 2666 Ramaxel Technology / / 2 N/A
3200 COLORFUL 战斧 16G/DDR4-3200 16G Non-XMP 3200 Samsung / / 2 N/A
